High Voltage Intelligent Battery Shunt Sensor with USB Interface

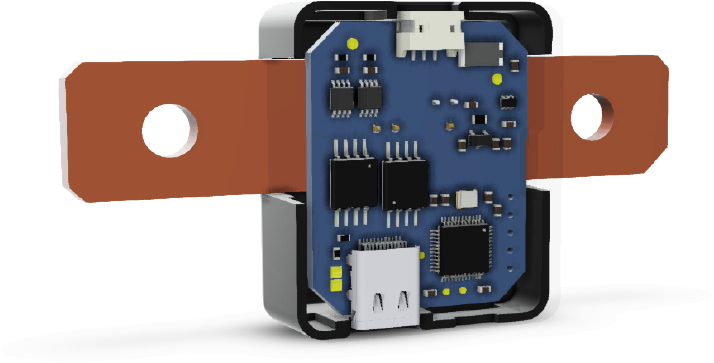

The HV-IBSS-USB is a reference design showcasing an isolated current and voltage measurement unit connected via USB-C. This design provides one current measurement channel and one voltage measurement channel. It also demonstrates the effectiveness of our WSBE low TCR battery shunt technology and our CDMA high-precision, low-tracing-error voltage divider in minimizing measurement variation with temperature changes. The HV-IBSS-USB can measure currents of up to ±500 A and voltages of up to ±1000 V. It streams high-resolution data to a virtual COM port at a low frequency.

Reference

<p>Functional Block Diagram</p>

Diagram 1

Features

  • USB-C connections for power and data
  • With terminal emulation suited for a wide variety of operating systems
  • Easy to connect to busbar and lugs via M6 screws
  • Factory two-point current calibration: < 0.2 %
  • Max. 10 ppm/K drift due to shunt
  • Approx. max. 34 ppm/K drift due to AFE and ADC

Products

Resistor: WSBE8518

Power Metal Strip® Shunt Resistor, Low TCR (Down to &lt; ± 10 ppm/°C), Very Low Value (Down to 15 µΩ)

DatasheetBuy NowSamples

Resistor: CDMA2512

Thick Film Chip Dividers, Medium Voltage

DatasheetBuy NowSamples
