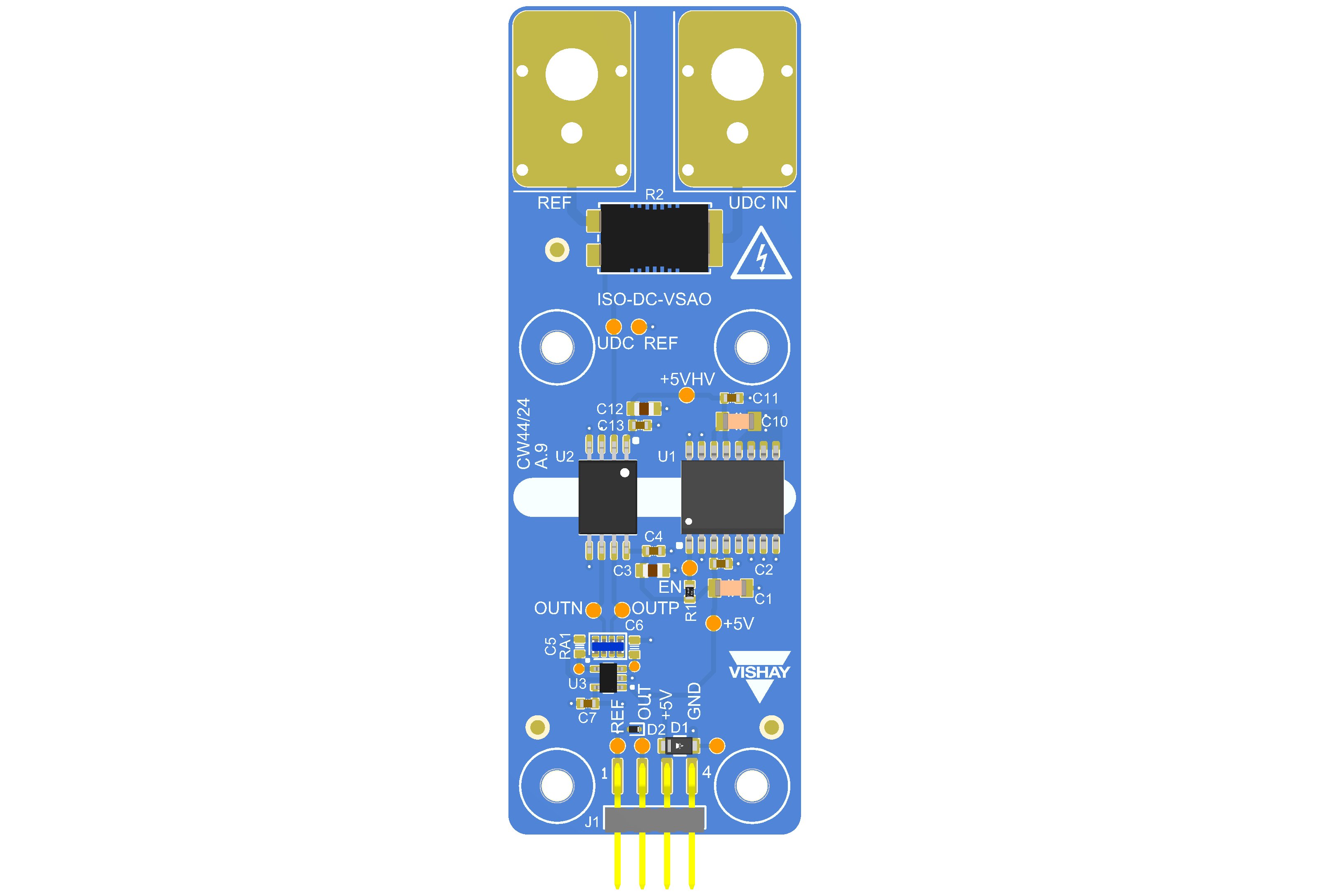

Isolated DC Voltage Sensor with Analog Output

In this design, the signal from a CDMM voltage divideror is fed to a VIA2000SD, a high-performance, isolated, differential output amplifier. The VIA2000SD has a linear differential input range of 0 V to 2 V and a linear differential output range of ±2.05 V, which is converted to a single-ended output ranging from 0 V to 2.5 V (OUT to GND). This output is ready to be interfaced with a single-ended ADC or multimeter. Using the combination of a chip voltage divider and a VIA2000SD isolation amplifier, this design provides an analog output for AC current measurement up to 1000 VRMS at a bandwidth of ~ 300 kHz.

Reference

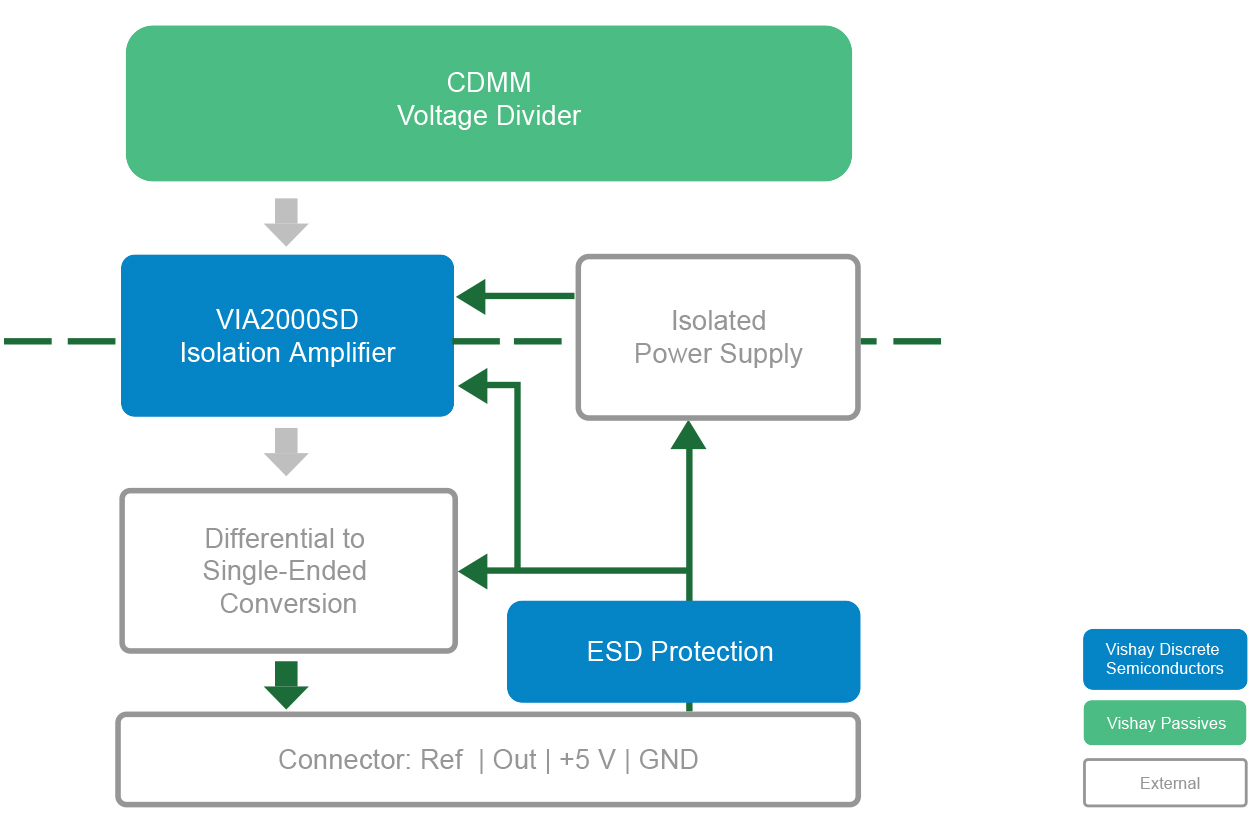

<p>Functional Block Diagram</p>

Diagram 1

Features

  • DC voltage measurements up to 1000 VRMS
  • Maximum working isolation voltage of 1200 VRMS
  • Isolated single-ended analog output
  • Low temperature offset and gain drift
  • Large bandwidth of 290 kHz

Products

Isolation Amplifier: VIA2000SD

High Reliability Reinforced Isolated Amplifier

DatasheetBuy NowSamples

Resistor: CDMM

Molded Thick Film Divider, High Voltage, High Precision, Surface-Mount

DatasheetBuy NowSamples

Resistor: ACAS 0606 AT, ACAS 0612 AT - Precision

Precision Thin Film Chip Resistor Array Superior Moisture Resistivity

DatasheetBuy NowSamples
