eFuse PowerStage with Pre-Charge Bidirectional, 1200 V, 20 mΩ SiC MOSFET

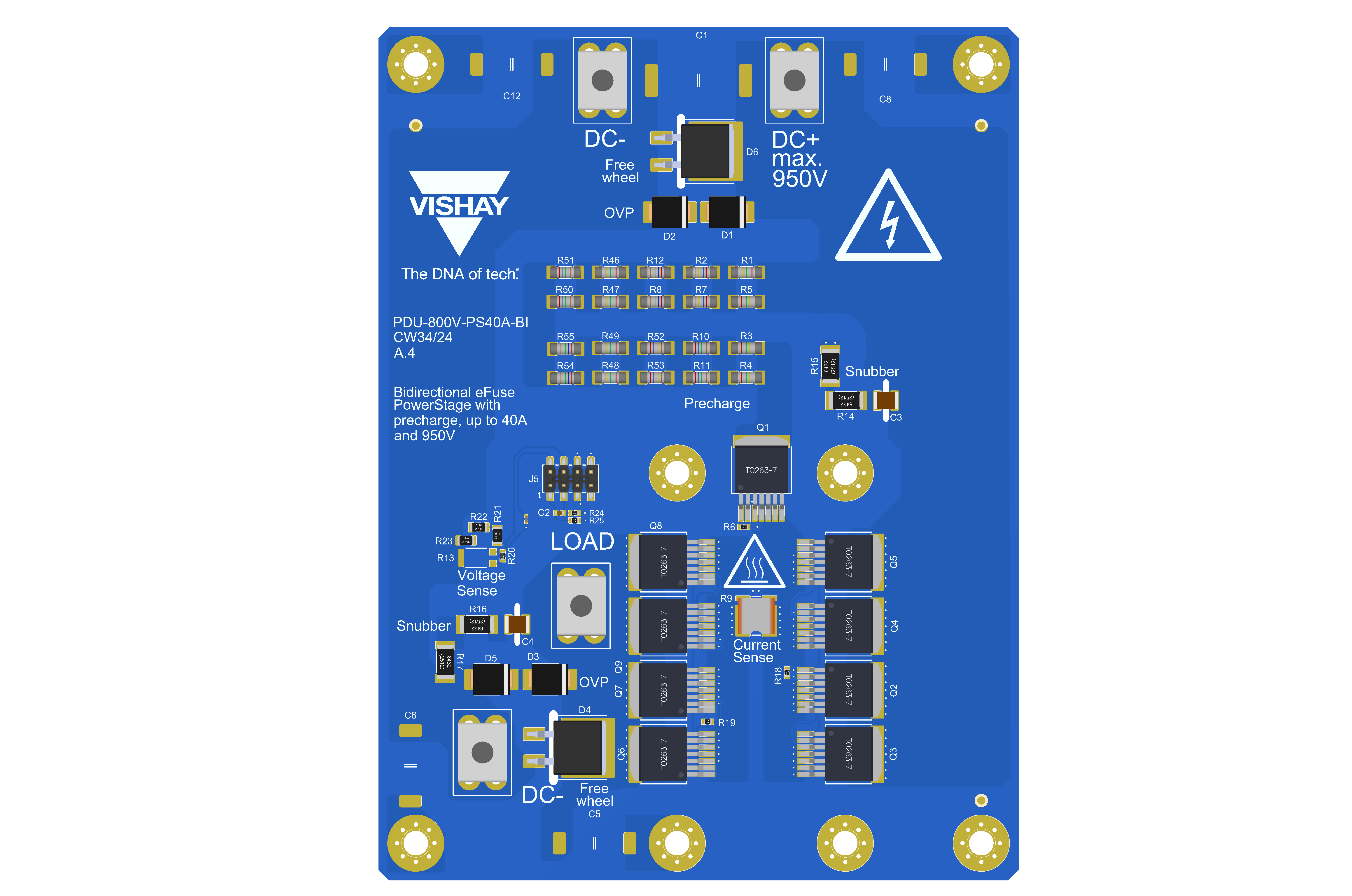

This eFuse PowerStage evaluation board is equipped with 1200 V, 20 mΩ total SiC MOSFETs to break bidirectional currents, as well as a pre-charge switch and resistor. The power circuit provides all the necessary feedback signals, including current and voltage. These signals are provided via a standard connector, allowing the user to attach a custom control board. The current handling capability of this power stage depends heavily on acceptable losses and thermal management. The design intention is to provide a possible solution for automotive eFuses that protect auxiliary components and handle currents of up to 40 A.

Reference

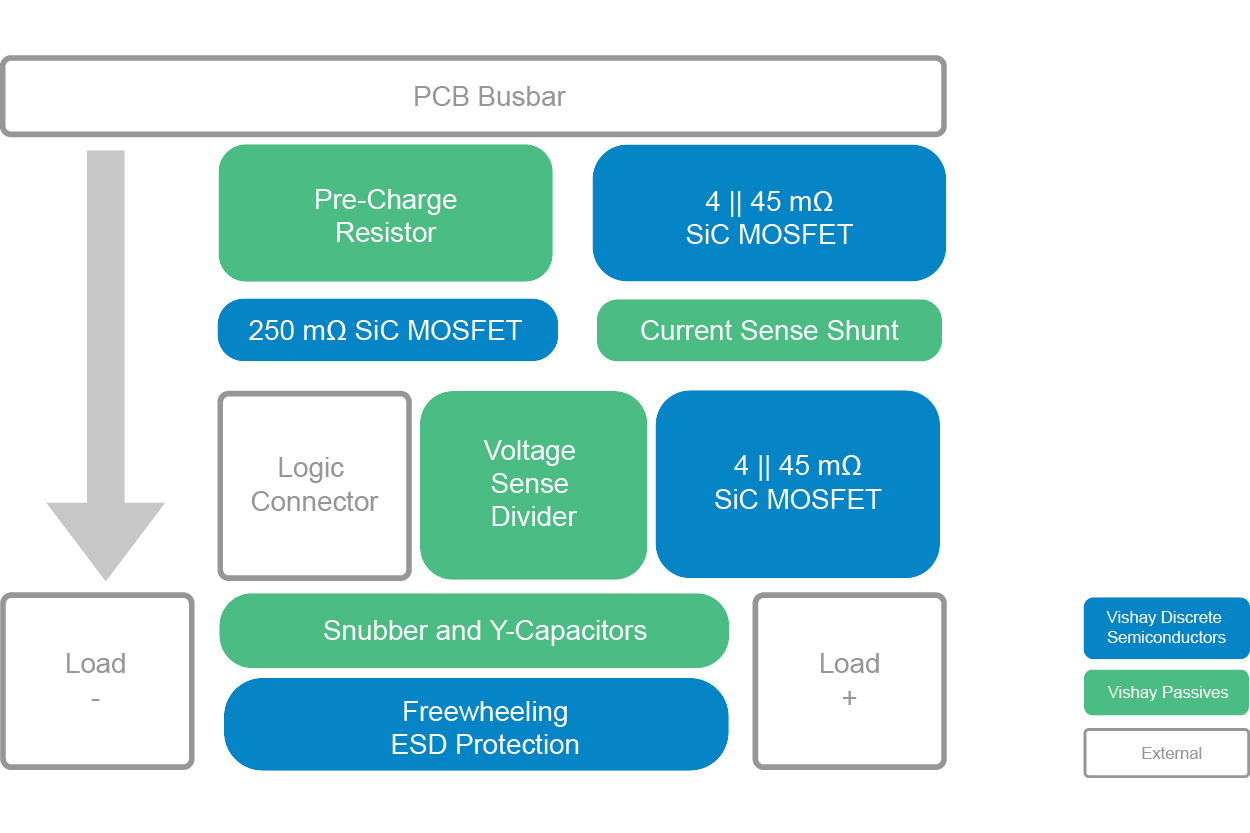

<p>Functional Block Diagram</p>

Diagram 1

Features

  • Low TCR shunt for precise current measurement
  • Low tracking error voltage divider
  • Robust I/O port with ESD protection and freewheel capabilities
  • Robust SiC switches with a 3 µs short circuit withstand time

Products

Resistor: CMA

0204, CMB 0207 High Pulse Load Carbon Film MELF Resistors

DatasheetBuy NowSamples

MOSFET: MXP120A045FE

MaxSiC® 1200 V N-Channel SiC MOSFET

DatasheetBuy NowSamples
